403-470 MHz
PROFESSIONAL SERIES OFFSET

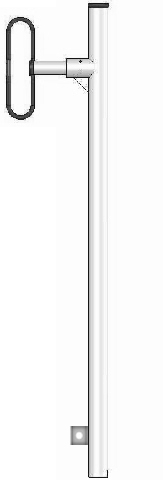

PROex403-4-Q-0 (QUARTER WAVE)
| Operating Frequency (VSWR ≤ 1.5) | 403-470 |
| Nominal Gain (dBi) | 4.5 |
| Horizontal Beamwidth (Deg-3dB) | 195 |
| Vertical Beamwidth (Deg-3dB) | 77 |
| Power Rating (W) | 300 |
| Length (inches) | 60 |
| Width (inches) | 11 |
| Antenna Weight (lbs.) | 8 |
| Cross Sectional Area (Max. Ft²) | 1.3 |
| Lateral Thrust at 100mph (lbs.) | 32.5 |
| Rated Wind Velocity (mph) | 150 |
| Rated Wind Velocity with 1/2'' radical (mph) | 90 |
PROex403-4-Q is equipped with 5' RG213 standard feedline and N-Female connector.
Feed Line Options: Extended feed line available in 5’ increments up to a
maximum of 50 '. All extended feed line antennas equipped with LMR 400 cable and N-Male connector.
Suggested mounting
bracket: C1002
(Bracket not included)
The PROex403-4-H-0 has been specifically engineered to meet or exceed all the requirements of a broadband, offset dipole professional grade antenna.
This antenna provides 4.5 dBi gain and operates effectively across the frequency band of 403-470 MHz with a VSWR of 1.5:1 or less.
The dipole to mast spacing is ½ wave. All Wavelink Antenna PRO Series offset antennas are manufactured using high strength 6061 T6 aluminum to ensure consistent operating performance. Each dipole junction is welded in a fixed position, incorporating a tuned, internal cable harness, thereby eliminating any exposure to the elements; every broadband dipole is fixed in place by a CNC-machined aluminum saddle. These two features combine to minimize or even eliminate all potential intermod or misalignment problems.
In addition, the dipoles are anodized to protect against environmental degradation. The PROex403-4 is made standard with 5' of RG213 cable with a soldered N-male crimp connector.
